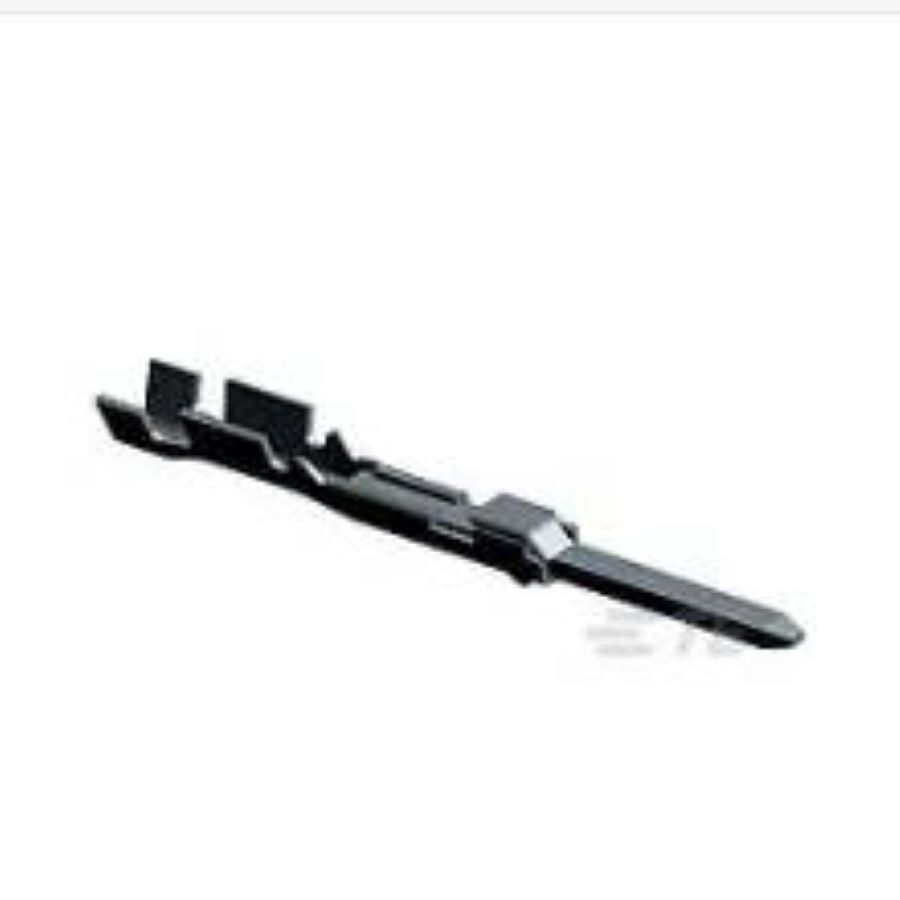

1-1419158-6
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1419158-6
Datasheet:
Description:
Automotive Connectors Cable Male 24 AWG to 22 AWG
| Parameter | Value |
|---|---|
| Length | 24.45 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Depth | 3.1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 6.5 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Connector Type | Connector, Crimp, Power |
| Wire/Cable Gauge | 20 AWG |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 1.651 mm |
| Mating Tab Width | 990.6 µm |
| Tab Thickness | 640 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 24 AWG to 22 AWG |
Stock: 40788
Distributors
pcbx
pcbxUnit Price$0.51070
Ext.Price$0.51070
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51070 | $0.51070 |
| 10 | $0.25535 | $2.55350 |
| 50 | $0.19642 | $9.82100 |
| 100 | $0.15109 | $15.10900 |
| 500 | $0.11622 | $58.11000 |
| 1000 | $0.08940 | $89.40000 |
| 3000 | $0.06877 | $206.31000 |
| 5000 | $0.05290 | $264.50000 |
| 10000 | $0.04069 | $406.90000 |
| 30000 | $0.04001 | $1200.30000 |
